28A single-pole ring type self-locking with lamp

Short Description:

-Product Model: Q28A

-Type:Single pole,Ring power lamp,Maintained

-Material:304 stainless steel housing,PA66

-Protection level:IP67, IK10, IP40.

-LED voltage:3V-220V

-Electrical parameters:5A /250VAC

-Contact resistance:≤50Ω

-Insulation resistance:≥1000MΩ

-Service temperature range:-20℃—55℃

-Lamp bead life:40,000 hours

-Mechanical life:30 times/min,500,000 times


  • :
  • Product Detail

    FAQ

    Product Tags

    Product Characteristics

    1. Flame retardant material, safety guarantee
    2. Stainless steel shell anticorrosive and dustproof.
    3. Contains PC button, silicone waterproof ring
    4. High performance, solid and reliable.

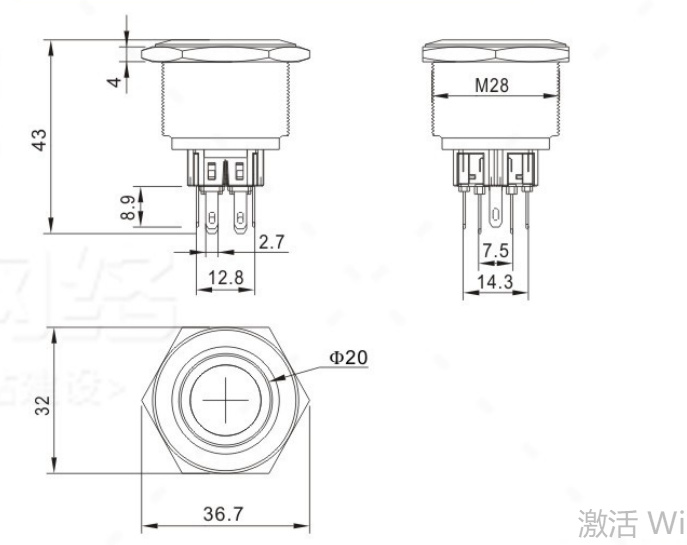

    Product Drawing

    sd

    Application Areas

    Products can be used in transportation, safety equipment, medical equipment, starter, access control and so on.

    Package picture

    sad
    asd
